Cap Mold
发表时间：2019-06-14     阅读次数：     字体：【大 中 小】
Product Description

Plastic Bottle Cap Mould , Cap Mold

Name
Combination A
Combination B
Combination C
Combination D
Core Material
38Cr
S136 (HRC 44-48)
S136 (HRC 44-48)
S136 (HRC 44-48)
Cavity Material
38Cr
S136 (HRC 42-46)
S136 (HRC 42-46)
S136 (HRC 42-46)
Neck Material
38Cr
S136 (HRC 48-52)
S136 (HRC 48-52)
S136 (HRC 48-52)
Mould Base Material
#45 steel
P20 (HRC 28-32)
P20 (HRC 28-32)
P20 (HRC 28-32)
Mould structure
Normal
Normal
Self Lock
Self Lock
Runner
Hot Runner
Preform Tail Type
Short/Long Tail
Short/Long Tail
Short/Long Tail
Valve gate
Surface Treatment
Polish and Chroming
Polish
Polish
Polish
Cavity
≤24 cavity
≤24 cavity
≤72 cavity
≤72 cavity
Warranty
0.8 Million Shots
1 Million Shots
3 Million Shots
3 Million Shots
Combination A price cheapest,suitable for small project and produce preform for own factory.
Combination B adopt S136 material,prolong the mould life time,and price only increase a little,the most cost-effective.
Combination C adopt self lock structure,every cavity is changable,prolong mould life time and raise product quality.
Combination D is best quality,suitable for professional preform supplier.

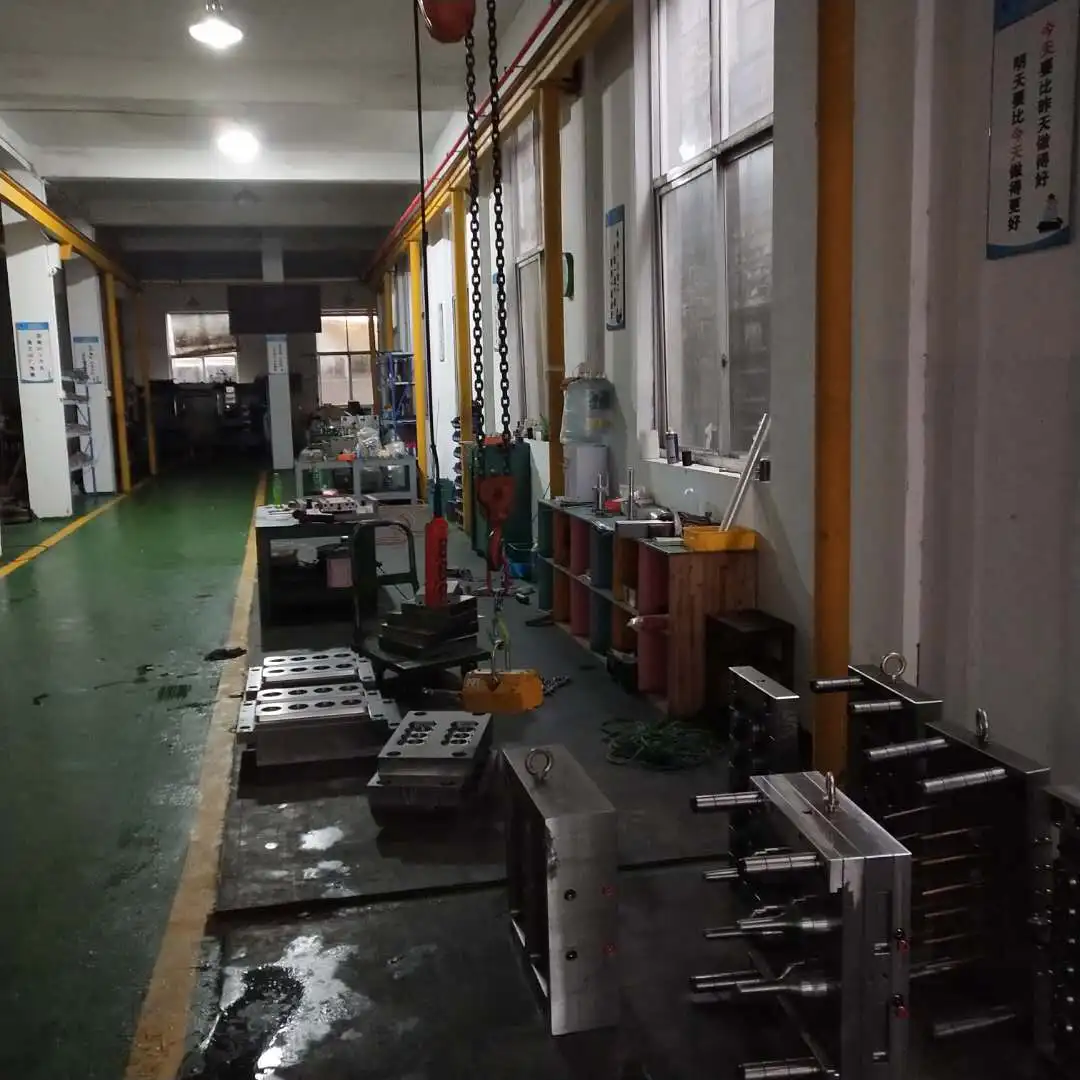

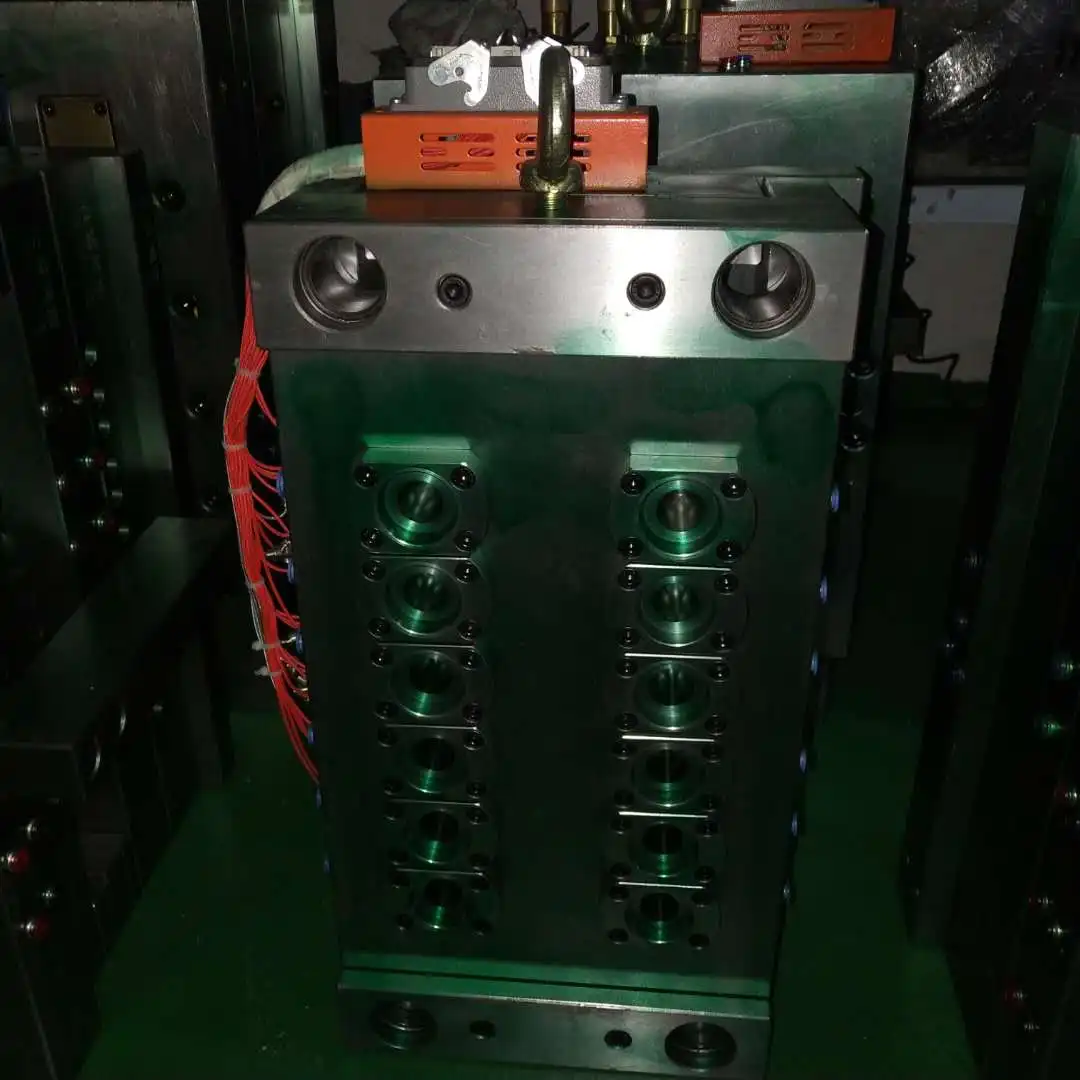

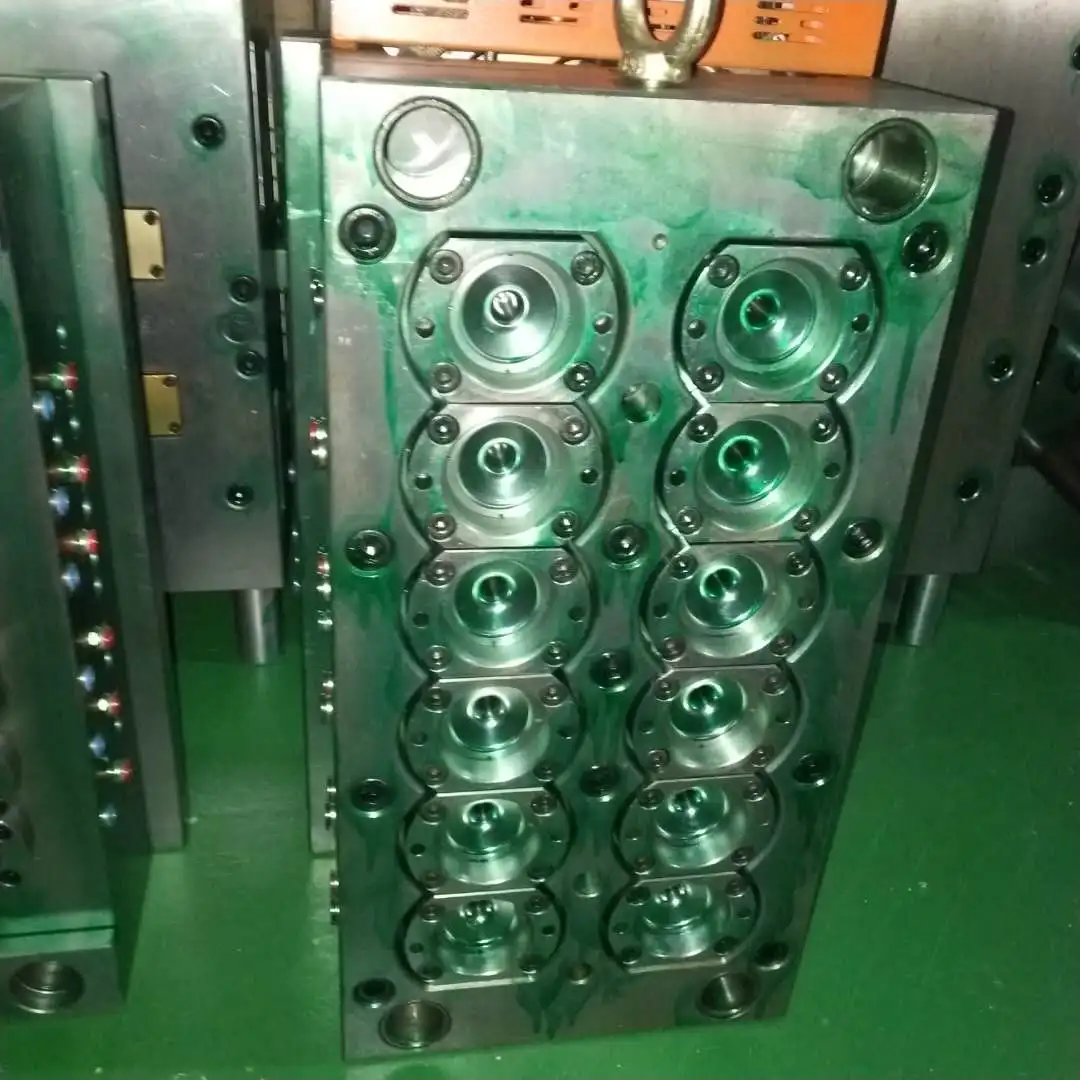

Detailed Images
