10L-25L (5 Gallon) Machine
发表时间：2019-05-20     阅读次数：
Overview
Quick Details
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Blow Moulding Type:
Stretch Blow Moulding
Automatic:
No
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Sico
Model Number:
SC-100
Year:
2019
Voltage:
380V/3phase/50HZ or custom
Dimension(L*W*H):
2190*740*1900mm
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
1 Year
Product name:
PET bottle blowing machine
Bottle material:
PET
Bottle volume:
10L-25L
Cavity:
1 cavity
Capacity:
80-220 bottle per hour
PLC:
Xinje ( Touch screen)
Power(W):
34/48
Weight:
1500kg
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
International standard fumigation wooden box packaging
Port
Ningbo Port
Lead Time :
Quantity(Sets)1 - 5>5
Est. Time(days)15To be negotiated
Product Description

Product Application

This machine is suitable for mineral water bottle,oil bottle,5 gallon bottle.


Use the advanced touch-screen computer control,easy operation,stable quality and high safety.
The production process is finished by the automatic micro-computerized control,only need one operator.

Semi Automatic 5 Gallon 20 Liter PET Plastic Bottle Making Machine
Bottle Volume:
10L-25L



Output:



(80-120BPH)
Bottle Type:
PET bottle


Auxiliary Equipment Needed
Air compressor
Air tank
Air filter
Air dryer (optional)
Chiller (optional)
Bottle mold
Advantage

1.Semi automatic running with theoretical output:
?80-100BPH for 5 gallon bottle.(Bottle weight 680-750 gram)
?160-220BPH for 10L-20L bottle.(Bottle weight 150-300 gram)
2.Advanced PLC control system with use-friendly touch screen.
3.Simple installation & start up operation.
4.Adopting double crank to adjust mould ,heavy locking mould, stable and fast.
5.Preforms are rotating in the heater to ensure being heated evenly.
6.Equipped with inner heating system,give equilibrium temperature for inside and surface of the perform,suitable for produce thick wall bottle.
7.Equipped with air cooling system ensure the bottle neck not deform.
8.Equipped with special designed air storage unit.
9.The machine surface is treated with baking varnish.

Model

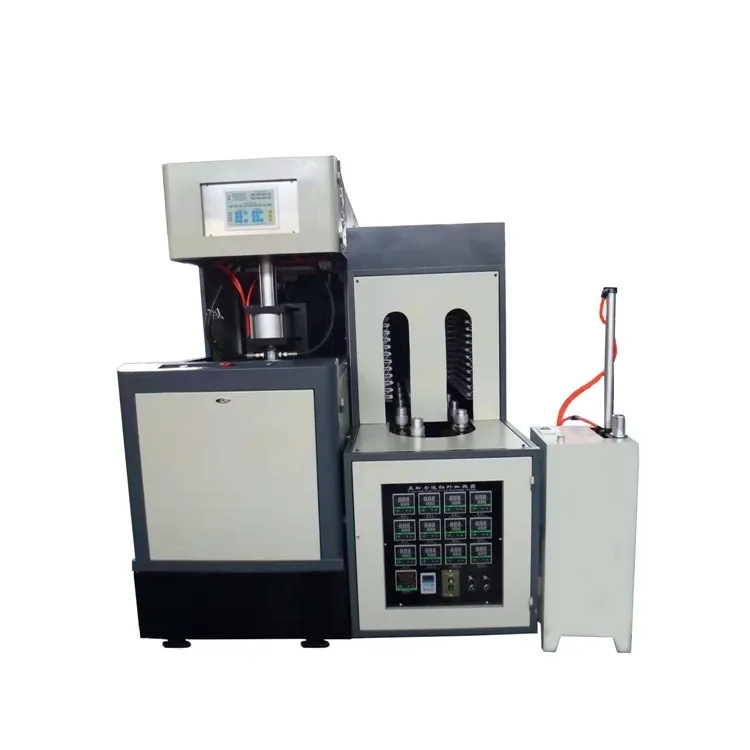

SC-100 Semi Automatic PET Bottle Blowing Machine
Theoretical output
800--1000 pcs/h


Finished bottle
Max. bottle volume
25L
Neck diameter
55mm
Max. bottle diameter
270mm
Max. bottle height
520mm

Mold specifications
Cavity
1 cavity
Mold thickness
200mm-360mm
Open stroke
350mm

Electrical system
Power voltage
380v/3Phase/50HZ
Installation power
34kw/48kw
Actual power consumption
11kw/16kw
Air source
Recommend air compressor
1.6m3/min 30Kg
Cooling water
Recommend water chiller
5HP
Blowing machine size
Length*width*height/weight
2190*740*1900mm/950kg
Heater size
Length*width*height/weight
2800*670*1600mm/350kg

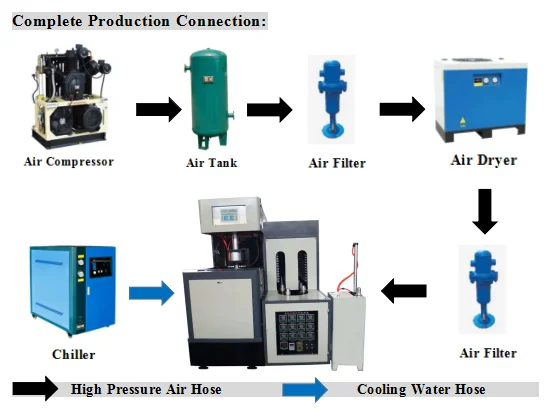

Production Line

Auxiliary Equipment

1. Air Compressor : Compress air,used for blowing bottle and blower action. ( Pressure 3.0Mpa )
2. Air Tank : Store high pressure air.
3. Air Filter : Including 1 set T-class filter (1um) and 1 set A-class filter (0.01um). Cleaning oil and dust.
4. Air Dryer : Cooling and dry air,improve bottle quality,prolong phnuematic parts life.
5. Chiller : Cooling mould,make the machine suitable to working 24 hour per day.

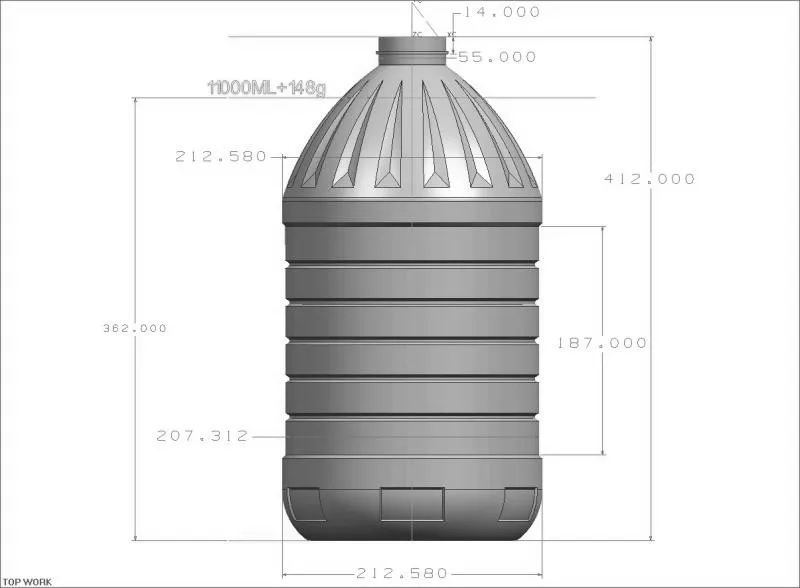

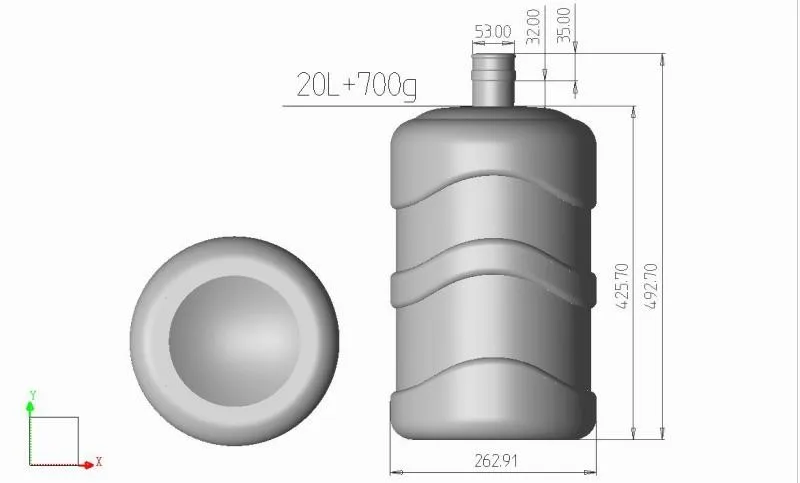

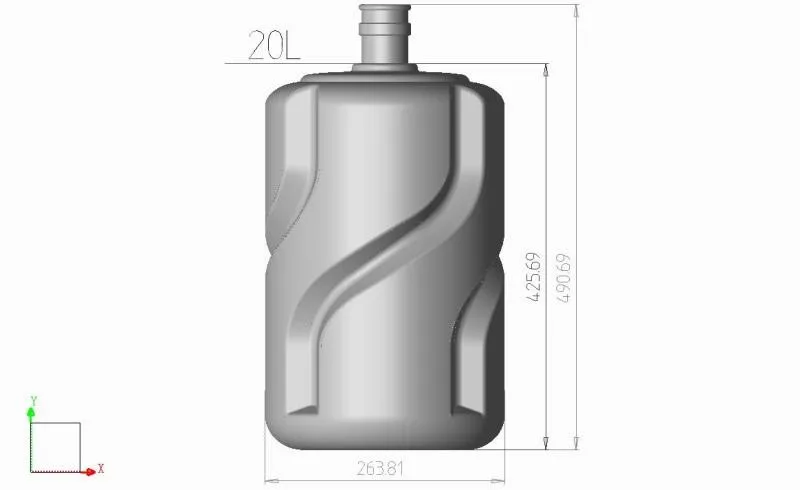

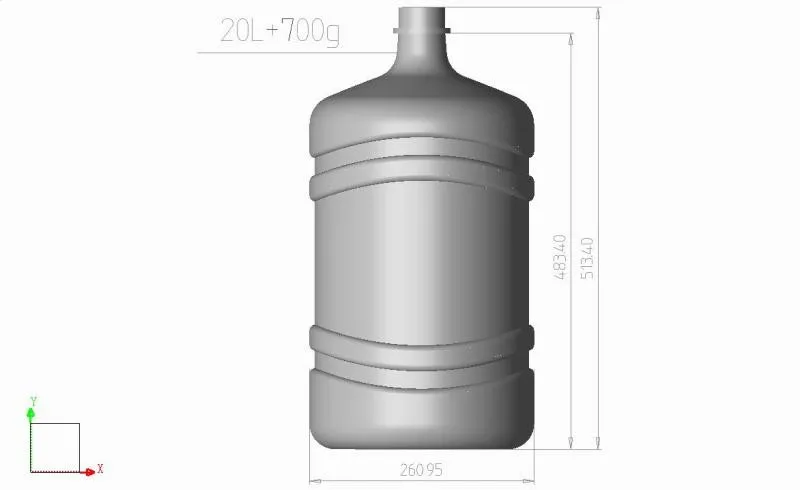

Bottle Design

We offer free bottle design service,a good bottle make your product competitor.
