PET Bottle Blowing Machine

current location: home » Product display » PET Bottle Blowing Machine

Hand Feeding Machine
发表时间：2019-06-13     阅读次数：
Overview
Quick Details
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Blow Moulding Type:
Stretch Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Sico
Model Number:
SC-1000
Year:
2019
Voltage:
380V/3phase/50HZ or custom
Dimension(L*W*H):
1980*1650*2020mm
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
1 Year
Product name:
PET bottle blowing machine
Bottle material:
PET
Bottle volume:
50ml-2L
Cavity:
2 cavity
Capacity:
1500 bottle per hour
PLC:
Mitsubishi ( Touch screen)
Power(W):
20
Weight:
2000kg
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
International standard fumigation wooden box packaging
Port
Ningbo Port
Lead Time :
Quantity(Sets)1 - 5>5
Est. Time(days)45To be negotiated
Product Description
Hand Feeding Automatic PET Plastic Bottle Blowing Machine
Bottle Volume:
50ml-2L
Cavity:
2 cavities
Output:
1500BPH
Bottle Type:
PET bottle

Auxiliary Equipmentm Needed
Air compressor
Air filter
Air dryer (optional)
Chiller (optional)
Bottle mold
Advantage

1.Hand feeding automatic running with theoretical output 1500BPH for 50ml-2L cosmetic bottle and jar.

2.Advanced PLC control system with use-friendly touch screen.
3.Simple installation & start up operation.
4.Adopting double crank to adjust mould ,heavy locking mould, stable and fast.
5.Preforms are rotating in the heater to ensure being heated evenly.
6.Equipped with air cooling system ensure the bottle neck not deform.
7.Equipped with special designed air storage unit.
8.The machine surface is treated with baking varnish.
Model
SC-1000 Semi Automatic PET Bottle Blowing Machine
Theoretical output
1200--1500 pcs/h


Finished bottle
Max. bottle volume
2L
Max. neck diameter
38mm
Max. bottle diameter
110mm
Max. bottle height
365mm

Mold specifications
Cavity
2 cavity
Mold thickness
180mm-240mm
Open stroke
130mm

Electrical system
Power voltage
380v/3Phase/50HZ
Installation power
20kw
Actual power consumption
15kw
Air source
Recommend air compressor
1.2m3/min 30Kg
Cooling water
Recommend water chiller
5HP
Blowing machine size
Length*width*height/weight
1980*1650*2020mm/2000kg
Production Line

Auxiliary Equipment

1. Air Compressor : Compress air,used for blowing bottle and blower action. ( Pressure 3.0Mpa )
2. Air Tank : Store high pressure air.
3. Air Filter : Including 1 set T-class filter (1um) and 1 set A-class filter (0.01um). Cleaning oil and dust.
4. Air Dryer : Cooling and dry air,improve bottle quality,prolong phnuematic parts life.
5. Chiller : Cooling mould,make the machine suitable to working 24 hour per day.

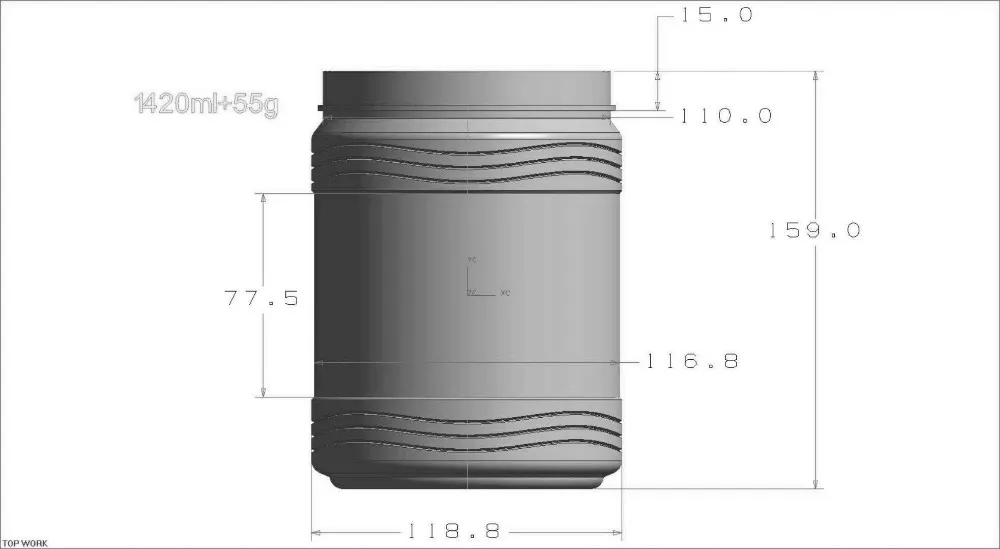

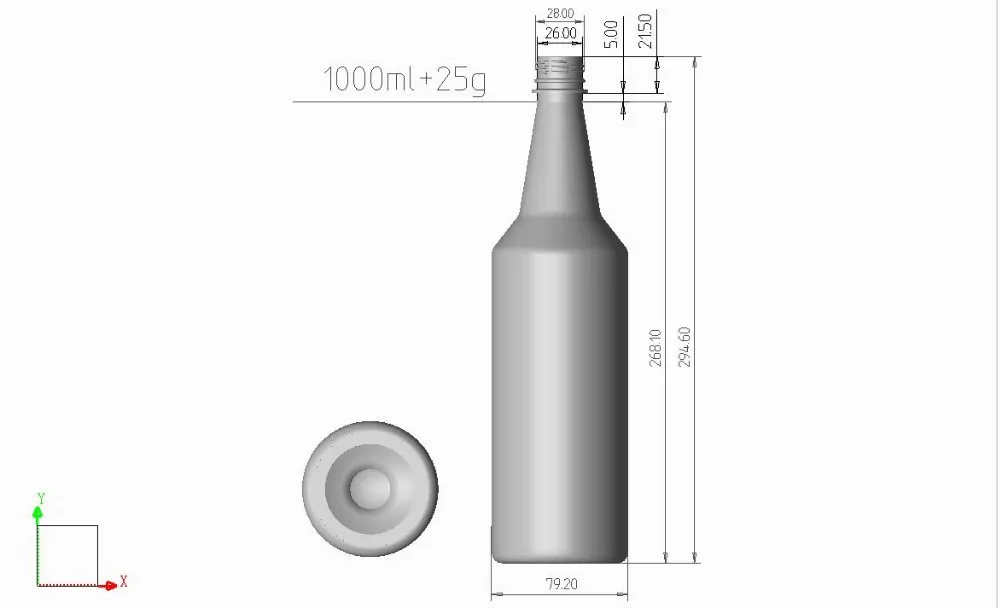

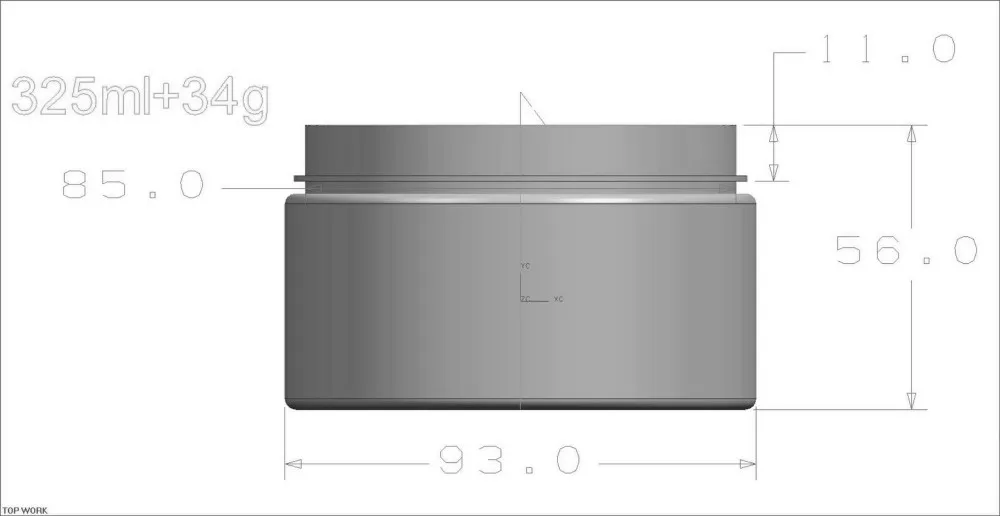

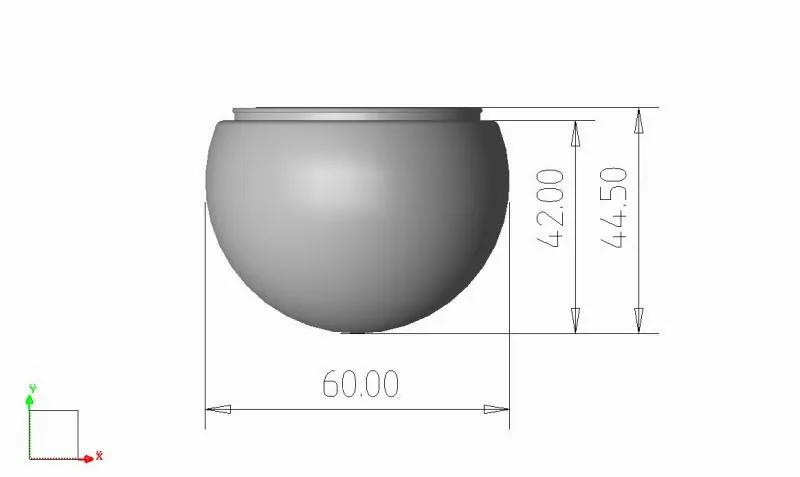

Bottle Design

We offer free bottle design service,a good bottle make your product competitor.
