5L-20L Automatic Machine

发表时间：2019-06-13 阅读次数：

Overview

Quick Details

Condition:: New

Application:: Bottle

Plastic Processed:: PET

Blow Moulding Type:: Stretch Blow Moulding

Automatic:: Yes

Place of Origin:: Zhejiang, China (Mainland)

Brand Name:: Sico

Model Number:: SC-5000

Year:: 2019

Voltage:: 380V/3phase/50HZ or custom

Dimension(L*W*H):: 2300*1950*2200mm

After-sales Service Provided:: Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Warranty:: 1 Year

Product name:: PET bottle blowing machine

Bottle material:: PET

Cavity:: 1cavity

PLC:: Mitsubishi ( Touch screen)

Power(W):: 20KW

Weight:: 3050kg

Supply Ability

Supply Ability:: 50 Set/Sets per Month

Packaging & Delivery

Packaging Details: International standard fumigation wooden box packaging

Port: Ningbo Port

Lead Time :

Quantity(Sets)	1 - 5	>5
Est. Time(days)	45	To be negotiated

Product Description

Full Automatic 5 Liter PET Plastic Bottle Blowing Machine
Bottle Volume:	3L-5L
Cavity:	1 cavity
Output:	700-800BPH
Bottle Type:	PET bottle
Auxiliary Equipment Needed	Air compressor Air filter Air dryer (optional) Chiller (optional) Bottle mold
Auxiliary Equipment Needed

Advantage

1.Full automatic running with theoretical output 700-800BPH for 3L-5L bottle.
2.Advanced PLC control system with use-friendly touch screen.
3.Simple installation & start up operation.
4.Adopting double crank to adjust mould ,heavy locking mould, stable and fast.
5.Preforms are rotating in the heater to ensure being heated evenly.
6.Equipped with air cooling system ensure the bottle neck not deform.
7.Equipped with special designed air storage unit.
8.The machine surface is treated with baking varnish.

Model	SC-5000 Semi Automatic PET Bottle Blowing Machine
Theoretical output	700--800 pcs/h
Finished bottle	Max. bottle volume	5L
	Max. neck diameter	48mm
	Max. bottle diameter	170mm
	Max. bottle height	380mm
Mold specifications	Cavity	1 cavity
	Mold thickness	90mm-270mm
	Open stroke	210mm
Electrical system	Power voltage	380v/3Phase/50HZ
	Installation power	20kw
	Actual power consumption	15kw
Air source	Recommend air compressor	1.6m3/min 30Kg
Cooling water	Recommend water chiller	5HP
Blowing machine size	Lengthwidthheight/weight	230019502200mm/2500kg
Auto Loader size	Lengthwidthheight/weight	230021502650 mm/550kg

Production Line

Auxiliary Equipment

1. Air Compressor : Compress air,used for blowing bottle and blower action. ( Pressure 3.0Mpa )

2. Air Tank : Store high pressure air.

3. Air Filter : Including 1 set T-class filter (1um) and 1 set A-class filter (0.01um). Cleaning oil and dust.

4. Air Dryer : Cooling and dry air,improve bottle quality,prolong phnuematic parts life.

5. Chiller : Cooling mould,make the machine suitable to working 24 hour per day.

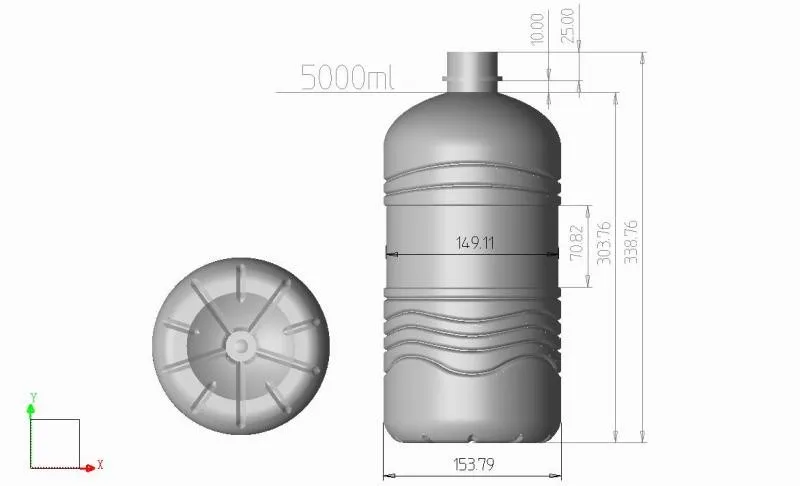

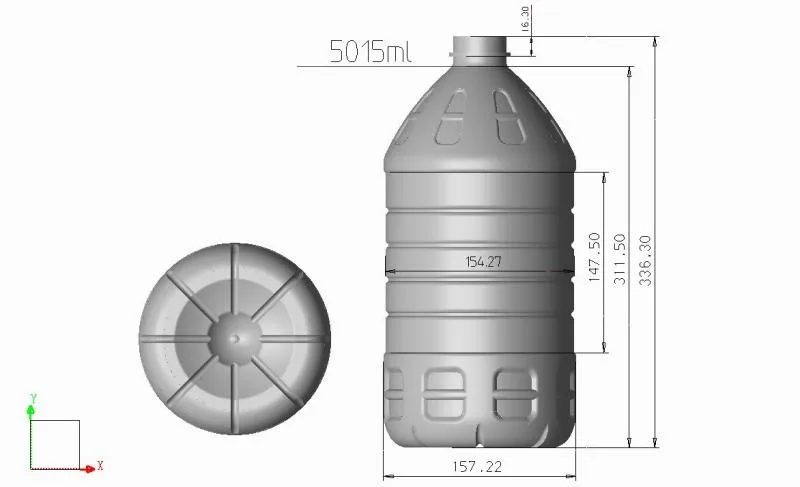

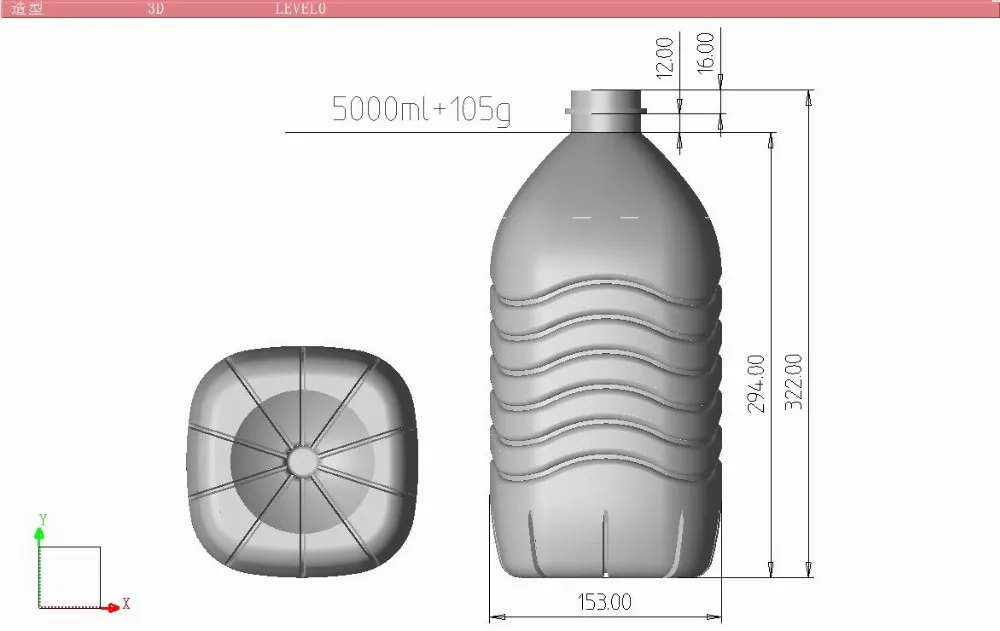

Bottle Design

We offer free bottle design service,a good bottle make your product competitor.
